Multi-planetary search

Show code cell source Hide code cell source

# in order to run on all CPUs
import os
import jax

jax.config.update("jax_enable_x64", True)
os.environ["XLA_FLAGS"] = f"--xla_force_host_platform_device_count={os.cpu_count()}"

In this notebook, we use nuance to search for the transiting exoplanets with the following parameters:

truth = [
    {"epoch": 0.5, "duration": 0.03, "period": 1.8, "depth": 3e-3},
    {"epoch": 0.2, "duration": 0.03, "period": 0.8, "depth": 1e-3},
]

Generating the data

Let generate this transit signals together with correlated noise

import tinygp
import numpy as np
import matplotlib.pyplot as plt
from nuance import core

# measurements
time = np.linspace(0, 6, 1000)
error = 0.0005
transits = [
    p["depth"] * core.transit(time, p["epoch"], p["duration"], p["period"])
    for p in truth
]
diff_transit_flux = np.sum(transits, 0) + 1.0

# GP
kernel = tinygp.kernels.quasisep.SHO(
    np.pi / (truth[1]["duration"] * 5), 8.0, truth[1]["depth"] / 2
)
gp = tinygp.GaussianProcess(kernel, time, diag=error**2, mean=0.0)
flux = diff_transit_flux + gp.sample(jax.random.PRNGKey(40))

plt.figure(None, (8.5, 3))
plt.plot(time, flux, ".", c="0.8")
plt.ylabel("flux")
plt.xlabel("time")

plt.tight_layout()

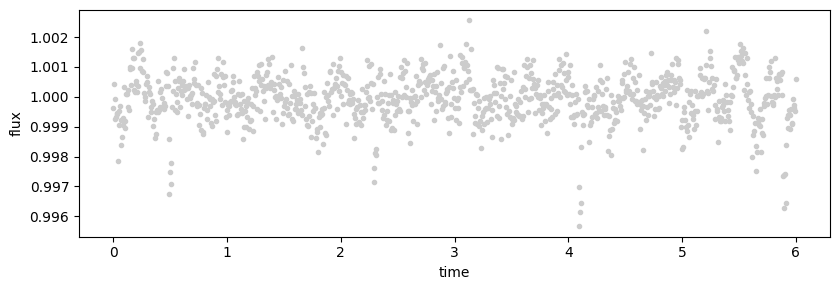

The linear search

We start by performing the linear_search over all times (considered as potential transit epochs) and on a wide range of durations.

from nuance.linear_search import linear_search

epochs = time.copy()
durations = np.linspace(0.01, 0.2, 15)

ls = linear_search(time, flux, gp=gp)(epochs, durations)

Note

Notice how we reused the same Gaussian Process used to generate the data. In practice, a kernel need to be chosen and its hyper-parameters optimized. See the GP optimization tutorial

Whatever the number of planets we will look for, this step needs to be done only once.

The periodic search

First planet

We can now perform the periodic_search

import matplotlib.pyplot as plt
from nuance.periodic_search import periodic_search

periods = np.linspace(0.3, 4.0, 4000)

snr_function = jax.jit(core.snr(time, flux, gp=gp))
ps_function = periodic_search(epochs, durations, ls, snr_function)
snr, params = ps_function(periods)

t0, D, P = params[np.argmax(snr)]

print(
    "\n".join(
        [f"{n}: {v:.3f}" for n, v in zip(["epoch", "duration", "period"], [t0, D, P])]
    )
)

/home/docs/checkouts/readthedocs.org/user_builds/nuance/envs/stable/lib/python3.10/site-packages/multiprocess/popen_fork.py:66: RuntimeWarning: os.fork() was called. os.fork() is incompatible with multithreaded code, and JAX is multithreaded, so this will likely lead to a deadlock.
  self.pid = os.fork()

epoch: 0.503
duration: 0.024
period: 1.798

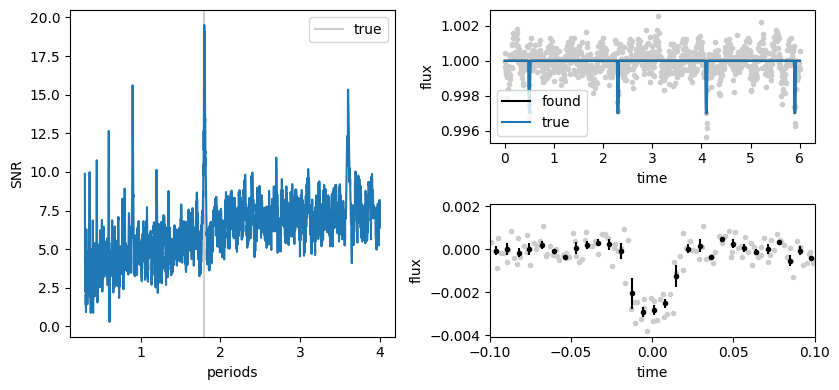

and plot the SNR periodogram

Show code cell source Hide code cell source

from nuance import utils

fig = plt.figure(figsize=(8.5, 4))

linear, found, noise = core.separate_models(time, flux, gp=gp)(t0, D, P)

transit_prams = truth[0]

ax = plt.subplot(121, xlabel="periods", ylabel="SNR")
ax.axvline(transit_prams["period"], c="0.8", ls="-", label="true")
ax.plot(periods, snr)
ax.legend()

ax = plt.subplot(222, xlabel="time", ylabel="flux")
ax.plot(time, flux, ".", c="0.8")
ax.plot(time, found + 1, c="k", label="found")
ax.plot(time, transits[0] + 1, c="C0", label="true")
ax.legend()

ax = plt.subplot(224, xlabel="time", ylabel="flux", xlim=(-0.1, 0.1))
phi = utils.phase(time, t0, P)
detrended = flux - noise - linear
plt.plot(phi, detrended, ".", c=".8")
bx, by, be = utils.binn_time(phi, detrended, bins=10 / 60 / 24)
plt.errorbar(bx, by, yerr=be, fmt=".", c="k")

plt.tight_layout()

/home/docs/checkouts/readthedocs.org/user_builds/nuance/envs/stable/lib/python3.10/site-packages/jax/_src/core.py:691: FutureWarning: unhashable type: <class 'jax._src.interpreters.partial_eval.DynamicJaxprTracer'>. Attempting to hash a tracer will lead to an error in a future JAX release.
  warnings.warn(

This corresponds to the first transit signal injected.

Second search

To look for a second planetary candidate, we can mask the current candidate with

from tinygp import GaussianProcess

phase = utils.phase(epochs, t0, P)
mask = np.abs(phase) > 2 * D
masked_gp = GaussianProcess(gp.kernel, time[mask], diag=gp.variance[mask])
masked_ls = np.array(ls)[:, mask]

and perform the second periodic search

Note

Again, we only have to perform another periodic search, reusing the products of the linear search without loss of sensitivity

snr_function = jax.jit(core.snr(time[mask], flux[mask], gp=masked_gp))
ps_function = periodic_search(epochs[mask], durations, masked_ls, snr_function)
snr, params = ps_function(periods)

t0, D, P = params[np.argmax(snr)]

print(
    "\n".join(
        [f"{n}: {v:.3f}" for n, v in zip(["epoch", "duration", "period"], [t0, D, P])]
    )
)

/home/docs/checkouts/readthedocs.org/user_builds/nuance/envs/stable/lib/python3.10/site-packages/multiprocess/popen_fork.py:66: RuntimeWarning: os.fork() was called. os.fork() is incompatible with multithreaded code, and JAX is multithreaded, so this will likely lead to a deadlock.
  self.pid = os.fork()

/home/docs/checkouts/readthedocs.org/user_builds/nuance/envs/stable/lib/python3.10/site-packages/multiprocess/popen_fork.py:66: RuntimeWarning: os.fork() was called. os.fork() is incompatible with multithreaded code, and JAX is multithreaded, so this will likely lead to a deadlock.
  self.pid = os.fork()

epoch: 0.204
duration: 0.024
period: 0.800

Show code cell source Hide code cell source

from nuance import utils

fig = plt.figure(figsize=(8.5, 4))

linear, found, noise = core.separate_models(time[mask], flux[mask], gp=masked_gp)(
    t0, D, P
)

transit_prams = truth[1]

ax = plt.subplot(121, xlabel="periods", ylabel="SNR")
ax.axvline(transit_prams["period"], c="0.8", ls="-", label="true")
ax.plot(periods, snr)
ax.legend()

ax = plt.subplot(222, xlabel="time", ylabel="flux")
ax.plot(time[mask], flux[mask], ".", c="0.8")
ax.plot(time[mask], found + 1, c="k", label="found")
ax.plot(time, transits[1] + 1, c="C0", label="true")
ax.legend()

ax = plt.subplot(224, xlabel="time", ylabel="flux", xlim=(-0.1, 0.1))
phi = utils.phase(time[mask], t0, P)
detrended = flux[mask] - noise - linear
plt.plot(phi, detrended, ".", c=".8")
bx, by, be = utils.binn_time(phi, detrended, bins=10 / 60 / 24)
plt.errorbar(bx, by, yerr=be, fmt=".", c="k")

plt.tight_layout()

/home/docs/checkouts/readthedocs.org/user_builds/nuance/envs/stable/lib/python3.10/site-packages/jax/_src/core.py:691: FutureWarning: unhashable type: <class 'jax._src.interpreters.partial_eval.DynamicJaxprTracer'>. Attempting to hash a tracer will lead to an error in a future JAX release.
  warnings.warn(

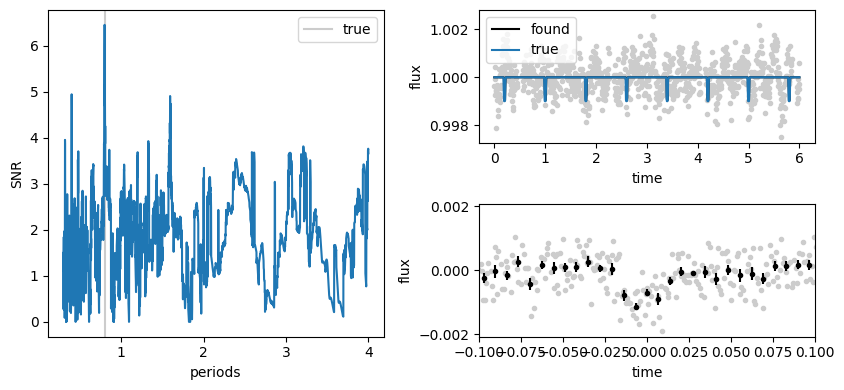

which is the second planetary transit injected.
