Periodic transit search#
In this notebook, we use nuance
to search for a periodic transit.
Show code cell source
# in order to run on all CPUs
import os
import jax
jax.config.update("jax_enable_x64", True)
os.environ["XLA_FLAGS"] = f"--xla_force_host_platform_device_count={os.cpu_count()}"
Generating the data#
Let’s generate some data first
import numpy as np
from nuance import core
import matplotlib.pyplot as plt
from tinygp import kernels, GaussianProcess
depth = 2.3e-3
error = 1e-3
time = np.linspace(0, 3.0, 4000)
transit_prams = {"epoch": 0.2, "duration": 0.05, "period": 0.7}
transit_model = depth * core.transit(time, **transit_prams)
kernel = kernels.quasisep.SHO(10.0, 10.0, 0.002)
gp = GaussianProcess(kernel, time, diag=error**2)
flux = transit_model + gp.sample(jax.random.PRNGKey(0)) + 1.0

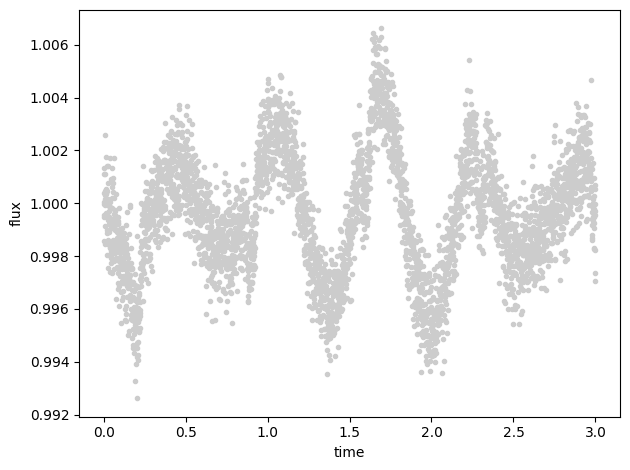

ax = plt.subplot(111, xlabel="time", ylabel="flux")
plt.plot(time, flux, ".", c="0.8")
plt.tight_layout()

Linear search#
We now run the linear_search
from nuance.linear_search import linear_search
epochs = time.copy()
durations = np.linspace(0.01, 0.2, 15)
ls = linear_search(time, flux, gp=gp)(epochs, durations)
Note
Notice how we reused the same Gaussian Process used to generate the data. In practice, a kernel need to be chosen and its hyper-parameters optimized. See the GP optimization tutorial
The periodic search#
We can now perform the periodic_search
from nuance.periodic_search import periodic_search
periods = np.linspace(0.1, 2.0, 4000)
snr_function = jax.jit(core.snr(time, flux, gp=gp))
ps_function = periodic_search(epochs, durations, ls, snr_function)
snr, params = ps_function(periods)
t0, D, P = params[np.argmax(snr)]
print(
"\n".join(
[f"{n}: {v:.3f}" for n, v in zip(["epoch", "duration", "period"], [t0, D, P])]
)
)
/home/docs/checkouts/readthedocs.org/user_builds/nuance/envs/latest/lib/python3.10/site-packages/multiprocess/popen_fork.py:66: RuntimeWarning: os.fork() was called. os.fork() is incompatible with multithreaded code, and JAX is multithreaded, so this will likely lead to a deadlock.
self.pid = os.fork()
epoch: 0.200
duration: 0.051
period: 0.700

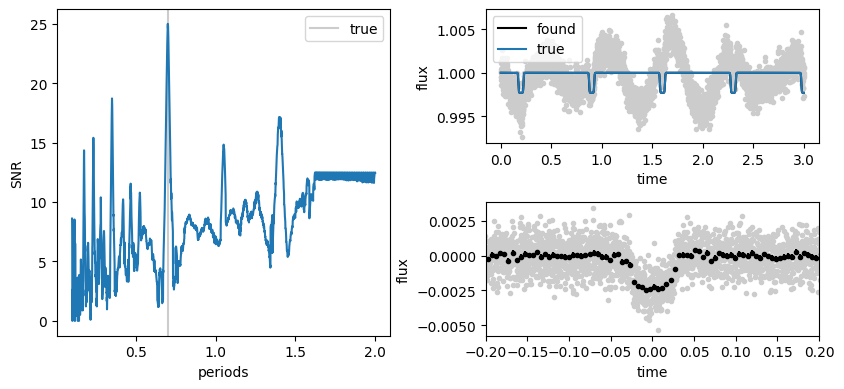

and plot the SNR periodogram
from nuance import utils
fig = plt.figure(figsize=(8.5, 4))
linear, found, noise = core.separate_models(time, flux, gp=gp)(t0, D, P)
ax = plt.subplot(121, xlabel="periods", ylabel="SNR")
ax.axvline(transit_prams["period"], c="0.8", ls="-", label="true")
ax.plot(periods, snr)
ax.legend()
ax = plt.subplot(222, xlabel="time", ylabel="flux")
ax.plot(time, flux, ".", c="0.8")
ax.plot(time, found + 1, c="k", label="found")
ax.plot(time, transit_model + 1, c="C0", label="true")
ax.legend()
ax = plt.subplot(224, xlabel="time", ylabel="flux", xlim=(-0.2, 0.2))
phi = utils.phase(time, t0, P)
detrended = flux - noise - linear
plt.plot(phi, detrended, ".", c=".8")
bx, by, be = utils.binn_time(phi, detrended, bins=7 / 60 / 24)
plt.errorbar(bx, by, yerr=be, fmt=".", c="k")
plt.tight_layout()
/home/docs/checkouts/readthedocs.org/user_builds/nuance/envs/latest/lib/python3.10/site-packages/jax/_src/core.py:691: FutureWarning: unhashable type: <class 'jax._src.interpreters.partial_eval.DynamicJaxprTracer'>. Attempting to hash a tracer will lead to an error in a future JAX release.
warnings.warn(

Note
If we want to search for another planetary candidate, we can mask the current candidate and reuse the linear search, only the periodic search needs to be reran. This is demonstrated in the Multi-planetary search notebook
